Description

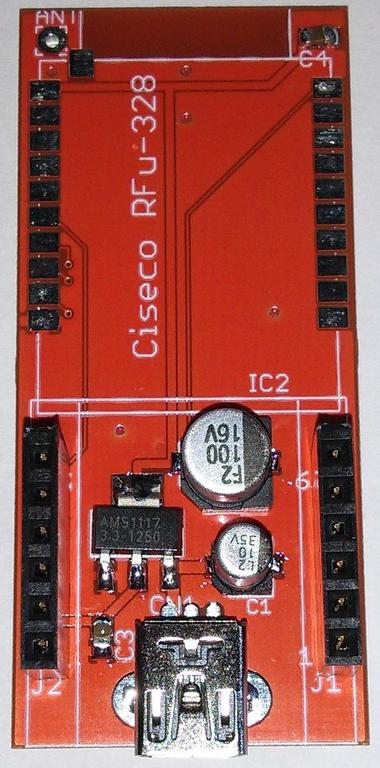

Ciseco RFu-328 with Wiznet Wiz820io Ethernet module in a very small package. My first experiment in using more surface mount components.

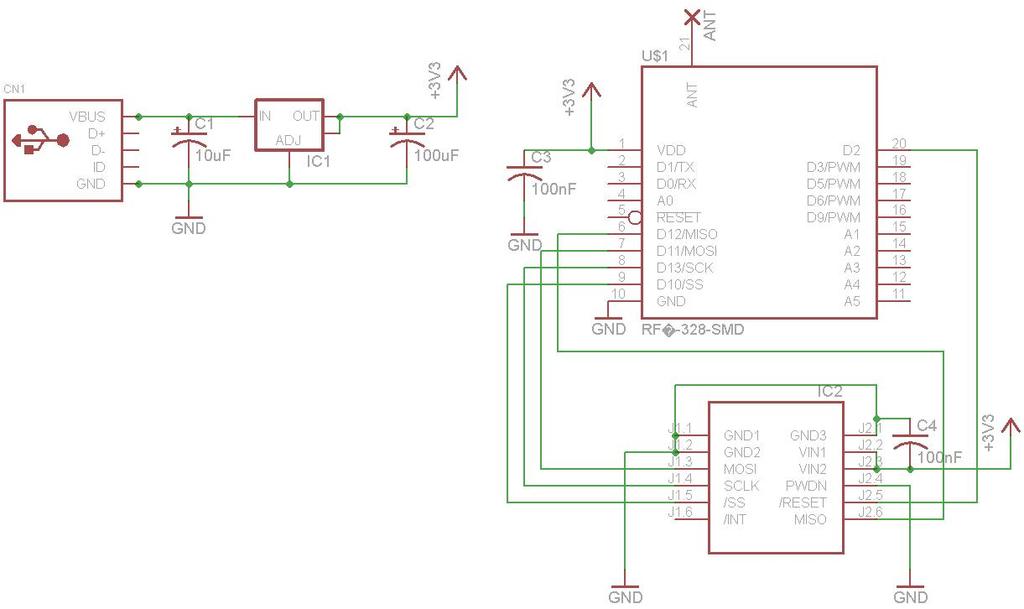

Schematic

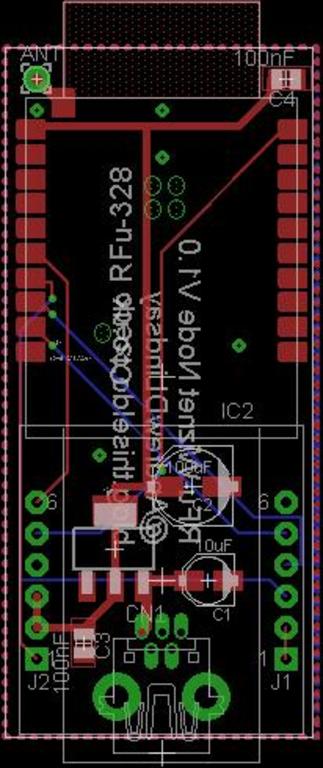

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| ANT | THROUGH-HOLE PAD | |
| C1 | 10uF | POLARIZED CAPACITOR, American symbol |
| C2 | 100uF | POLARIZED CAPACITOR, American symbol |
| C3 | 100nF | CAPACITOR, American symbol |
| C4 | 100nF | CAPACITOR, American symbol |
| CN1 | USB Connectors | |
| IC1 | Voltage Regulator LM1117 | |
| IC2 | WIZnet, WIZ820io plug in module incl. W5200 chip and MagJack | |
| U$1 | RF?-328-SMD |
[JSON]
This project is © Andrew Lindsay, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
